JHA-QSFP28-4SFP28-100G-PCU Spec
浏览量:
1008

JHA-QSFP28-4SFP28-100G-PCU Spec

QSFP28passivecoppercableassemblyfeatureeightdifferentialcopperpairs,providingfourdatatransmissionchannelsatspeedsupto28Gbpsperchannel,andmeets100GEthernet,25GEthernetandInfiniBandEnhancedDataRate(EDR)requirements.Availableinabroadrangofwiregages-from26AWGthrough30AWG-this100Gcoppercableassemblyfeatureslowinsertionlossandlowcrosstalk.Designedforapplicationsinthedatacenter,networkingandtelecommunicationsmarketsthatrequireahighspeed,reliablecableassembly,thisnextgenerationproductsharesthesamematinginterfacewithQSFP+formfactor,makingitbackwardcompatiblewithexistingQSFPports.QSFP28canbeusedwithcurrent10Gand14Gapplicationswithsubstantialsignalintegritymargin.
零售价
0.0
元
市场价
0.0
元
浏览量:
1008
产品编号
数量
-
+
库存:
0
返回列表
1
产品描述
产品特征
产品参数
产品描述:
产品特征:

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

扫二维码用手机看
未找到相应参数组，请于后台属性模板中添加

l w Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR

l w Supports aggregate data rates of 100Gbps

l w Optimized construction to minimize insertion loss and cross talk

l w Backward compatible with existing QSFP+ connectors and cages

l w Pull-to-release slide latch design

l  26AWG through 30AWG cable

l w Straight and break out assembly configurations available

l    Customized cable braid termination limits EMI radiation

l    Customizable EEPROM mapping for cable signature

   RoHS compliant

Product   Applications

l Switches,servers and routers

l Data Center networks

l Storage area networks

l High performance computing

l Telecommunication and wireless infrastructure

l Medical diagnostics and networking

l Test and measurement equipment

Industry  Standards

l 100G Ethernet(IEEE 802.3bj)

l 25G  Ethernet(IEEE 802.3by)

l InfiniBand EDR

l SFF-8665   QSFP+  28G  4X Pluggable  Transceiver  Solution(QSFP28)

l SFF-8402 SFP+ 1X 28Gb/s Pluggable Transceiver  Solution(SFP28)

Technical  Documents

l 108-32081 QSFP28  Copper  Module  Direct  Attach  Cable  Assembly

l 108-2364  Single  Port and Ganged  SFP+ Cages,Zsfp+  Single  Port and Ganged Cages,and SFP+  Copper Direct Attach Cable Assemblies.

High Speed Characteristics





Parameter

Symbol

Min

Typical

Max

Unit

Note



Differential Impedance

RIN,P-P

90

100

110

Ώ





Insertion loss

SDD21

8



22.48

dB

At 12.8906 GHz



Differential Return Loss

SDD11



12.45



See 1

dB

At 0.05 to 4.1 GHz



SDD22

3.12



See 2

dB

At 4.1 to 19 GHz









Common-mode to

SCC11







dB





common-mode

2





At 0.2 to 19 GHz



SCC22







output return loss

































Differential to common-mode

SCD11



12



See 3

dB



At 0.01 to 12.89 GHz















return loss

SCD22

10.58



See 4



At 12.89 to 19 GHz





































10









At 0.01 to 12.89 GHz



Differential to common Mode

SCD21-IL







See 5

dB



At 12.89 to 15.7 GHz



Conversion Loss













6.3









At 15.7 to 19 GHz



Channel Operating Margin

COM

3





dB



Notes:

1. Reflection Coefficient given by equation SDD11(dB) < 16.5 - 2 × SQRT(f ), with f in GHz

2. Reflection Coefficient given by equation SDD11(dB) < 10.66 - 14 × log10(f/5.5), with f in GHz

3. Reflection Coefficient given by equation SCD11(dB) < 22 - (20/25.78)*f, with f in GHz

4. Reflection Coefficient given by equation SCD11(dB) < 15 - (6/25.78)*f, with f in GHz

5. Reflection Coefficient given by equation SCD21(dB) < 27 - (29/22)*f, with f in GHz



Pin Descriptions



SFP28 Pin Function Definition



Pin

Logic

Symbol

Name/Description

Notes

1



VeeT

Transmitter Ground



2

LV-TTL-O

TX_Fault

N/A

1

3

LV-TTL-I

TX_DIS

Transmitter Disable

2

4

LV-TTL-I/O

SDA

Tow Wire Serial Data



5

LV-TTL-I

SCL

Tow Wire Serial Clock



6



MOD_DEF0

Module present, connect to VeeT



7

LV-TTL-I

RS0

N/A

1

8

LV-TTL-O

LOS

LOS of Signal

2

9

LV-TTL-I

RS1

N/A

1

10



VeeR

Reciever Ground



11



VeeR

Reciever Ground



12

CML-O

RD-

Reciever Data Inverted



13

CML-O

RD+

Reciever Data Non-Inverted



14



VeeR

Reciever Ground



15



VccR

Reciever Supply 3.3V



16



VccT

Transmitter Supply 3.3V



17



VeeT

Transmitter Ground





18

CML-I

TD+



Transmitter Data Non-Inverted





19

CML_I

TD-



Transmitter Data Inverted





20



VeeT



Transmitter Ground



1.

Signals not supported in SFP+ Copper pulled-downto VeeT with 30K ohms resistor



2.

Passive cable assemblies do not support

LOS and TX_DIS

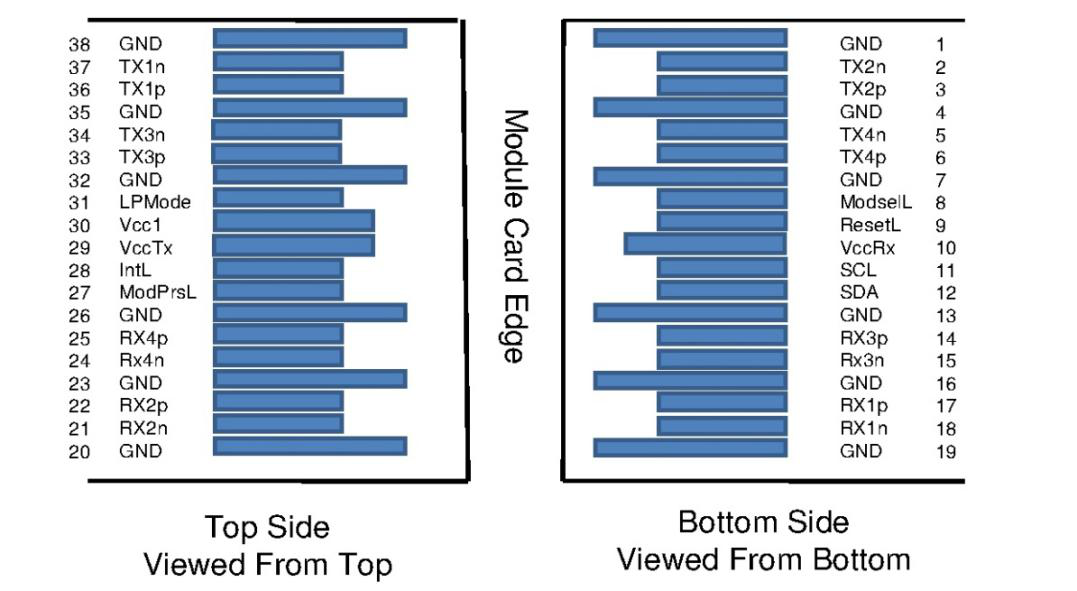

QSFP28 Pin Function Definition



Pin

Logic

Symbol

Description

1



GND

Ground









2

CML-I

Tx2n

Transmitter Inverted Data Input









3

CML-I

Tx2p

Transmitter Non-Inverted Data Input

4



GND

Ground









5

CML-I

Tx4n

Transmitter Inverted Data Input









6

CML-I

Tx4p

Transmitter Non-Inverted Data Input









7



GND

Ground









8

LVTTL-I

ModSelL

Module Select









9

LVTTL-I

ResetL

Module Reset









10



Vcc Rx

+3.3V Power Supply Receiver









11

LVCMOS-

SCL

2-wire serial interface clock

I/O















12

LVCMOS-

SDA

2-wire serial interface data

I/O















13



GND

Ground









14

CML-O

Rx3p

Receiver Non-Inverted Data Output









15

CML-O

Rx3n

Receiver Inverted Data Output

16



GND

Ground









17

CML-O

Rx1p

Receiver Non-Inverted Data Output









18

CML-O

Rx1n

Receiver Inverted Data Output















19



GND

Ground

















20



GND

Ground

















21

CML-O

Rx2n

Receiver Inverted Data Output

















22

CML-O

Rx2p

Receiver Non-Inverted Data Output





23



GND

Ground

















24

CML-O

Rx4n

Receiver Inverted Data Output

















25

CML-O

Rx4p

Receiver Non-Inverted Data Output

















26



GND

Ground





27

LVTTL-O

ModPrsL

Module Present

















28

LVTTL-O

IntL

Interrupt

















29



Vcc Tx

+3.3V Power supply transmitter

















30



Vcc1

+3.3V Power supply

















31

LVTTL-I

LPMode

Low Power Mode

















32



GND

Ground

















33

CML-I

Tx3p

Transmitter Non-Inverted Data Input

















34

CML-I

Tx3n

Transmitter Inverted Data Input

















35



GND

Ground

















36

CML-I

Tx1p

Transmitter Non-Inverted Data Input





37

CML-I

Tx1n

Transmitter Inverted Data Input

















38



GND

Ground

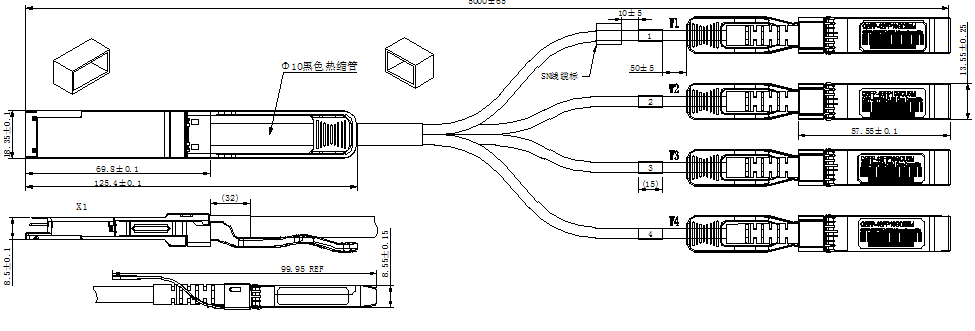

Mechanical Specifications



The connector is compatible with the SFF-8432 and SFF-8665 specification.



Length (m)

Cable AWG

1

30

2

30

3

26

4

26

5

26

Regulatory Compliance



Feature

Test Method

Performance

Electrostatic Discharge (ESD) to the Electrical Pins



MIL-STD-883C Method 3015.7



Class 1(>2000 Volts)

Electromagnetic Interference(EMI)

FCC Class B

Compliant with Standards

CENELEC EN55022 Class B

CISPR22 ITE Class B



RF Immunity(RFI)



IEC61000-4-3

Typically Show no Measurable Effect from a 10V/m Field Swept from 80 to 1000MHz

RoHS Compliance

RoHS Directive 2011/6/5/EU and it's Amendment Directives 6/6

RoHS 6/6 compliant
