A0C/DAC Cable
/
DAC 高速铜制电缆
/
JHA-QSFP-4SFP-40G-PCU Spec
浏览量:
1008

JHA-QSFP-4SFP-40G-PCU Spec

QSFP+DirectAttachCablesarecompliantwiththeSFF-8436specifications.  SFP+DirectAttachCablesarecompliantwiththeSFF-8431,SFF-8432andSFF-8472specifications.Variouschoicesofwiregaugeareavailablefrom30to24AWGwith  variouschoicesofcablelength(upto7m).
零售价
0.0
元
市场价
0.0
元
浏览量:
1008
产品编号
数量
-
+
库存:
0
产品描述
产品特征
产品参数
产品描述:
产品特征:

QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications.   SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with   various choices of cable length(up to 7m).

扫二维码用手机看
未找到相应参数组，请于后台属性模板中添加

• Compliant with SFF- 8436, SFF-8431, SFF-8432 and SFF-8472

• Up to 10. 3125Gbps data rate per channel

• Up to 7m transmission

• Operating temperature: -40℃ to +80℃

• Single 3.3V power supply

• RoHS compliant



Benefits

•Cost-effective copper solution

•Lowest total system power solution

•Lowest total system EMI solution

•Optimized design for Signal Integrity

Applications

• 40G Ethernet

Pin Function Definition



QSFP+ Pin Function Definition



Pin

Logic

Symbol

Description

1



GND

Ground

2

CML-I

Tx2n

Transmitter Inverted Data Input

3

CML-I

Tx2p

Transmitter Non-Inverted Data Input

4



GND

Ground

5

CML-I

Tx4n

Transmitter Inverted Data Input

6

CML-I

Tx4p

Transmitter Non-Inverted Data Input

7



GND

Ground

8

LVTTL-I

ModSelL

Module Select

9

LVTTL-I

ResetL

Module Reset

10



Vcc Rx

+3.3V Power Supply Receiver

11

LVCMOS-

I/O

SCL

2-wire serial interface clock

12

LVCMOS-

I/O

SDA

2-wire serial interface data

13



GND

Ground

14

CML-O

Rx3p

Receiver Non-Inverted Data Output

15

CML-O

Rx3n

Receiver Inverted Data Output

16



GND

Ground

17

CML-O

Rx1p

Receiver Non-Inverted Data Output

18

CML-O

Rx1n

Receiver Inverted Data Output

19



GND

Ground

20



GND

Ground

21

CML-O

Rx2n

Receiver Inverted Data Output

22

CML-O

Rx2p

Receiver Non-Inverted Data Output

23



GND

Ground

24

CML-O

Rx4n

Receiver Inverted Data Output

25

CML-O

Rx4p

Receiver Non-Inverted Data Output

26



GND

Ground

27

LVTTL-O

ModPrsL

Module Present

28

LVTTL-O

IntL

Interrupt

29



Vcc Tx

+3.3V Power supply transmitter

30



Vcc1

+3.3V Power supply

31

LVTTL-I

LPMode

Low Power Mode

32



GND

Ground

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input

34

CML-I

Tx3n

Transmitter Inverted Data Input

35



GND

Ground

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input

37

CML-I

Tx1n

Transmitter Inverted Data Input

38



GND

Ground

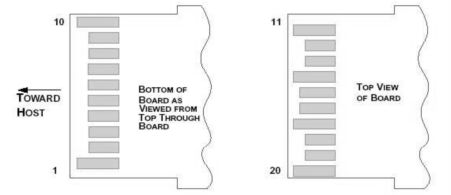

SFP+ Pin Function Definition



Pin

Logic

Symbol

Description

1



VeeT

Module Transmitter Ground

2

LVTTL-O

Tx_Fault

Module Transmitter Fault

3

LVTTL-I

Tx_Disable

Transmitter disable; Turns off transmitter laser output

4

LVTTL-I/O

SDA

2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i)

5

LVTTL-I/O

SCL

2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i)

6



Mod_ABS

Module Absent, connected to VeeT or VeeR in the module

7

LVTTL-I

RS0

Rate Select 0, optionally controls SFP+ module receiver

8

LVTTL-O

Rx_LOS

Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect)

9

LVTTL-I

RS1

Rate Select 1, optionally controls SFP+ module transmitter

10



VeeR

Module Receiver Ground

11



VeeR

Module Receiver Ground

12

CML-O

RD-

Receiver Inverted Data Output

13

CML-O

RD+

Receiver Non-Inverted Data Output

14



VeeR

Module Receiver Ground

15



VccR

Module Receiver 3.3 V Supply

16



VccT

Module Transmitter 3.3 V Supply

17



VeeT

Module Transmitter Ground

18

CML-I

TD+

Transmitter Non-Inverted Data Input

19

CML-I

TD-

Transmitter Inverted Data Input

20



VeeT

Module Transmitter Ground

General Product Characteristics



Q/4SFP+ DAC Specifications



Number of Lanes

Tx & Rx

Channel Data Rate

10.3125 Gbps

Operating Temperature

0 to + 70°C

Storage Temperature

-40 to + 85°C

Supply Voltage

3.3 V nominal

Electrical Interface

38 pins edge connector(QSFP+)

20 pins edge connector(SFP+)

Management Interface

Serial, I2C

High Speed Characteristics



Parameter

Symbol

Min

Typ

Max

Units

Notes

Differential Impedance

Zd

90

100

110

Ω





Differential Input Return Loss





SDDXX

<-12+2* SQRT (f) with f in GHz

dB

0.01~4.1GHz

<-6.3+13*

Log10/(f/5.5) with f in GHz



dB



4.1~11.1GHz

Common Mode Output Return Loss



SCCXX

< -7+1.6*f with f in GHz

dB

0.01~2.5GHz





-3

dB

2.5~11.1GHz

Difference Waveform Distortion Penalty

dWDPc





6.75

dB



VMA Loss

L





4.4

dB



VMA Loss to Crosstalk Ratio

VCR

32.5





dB

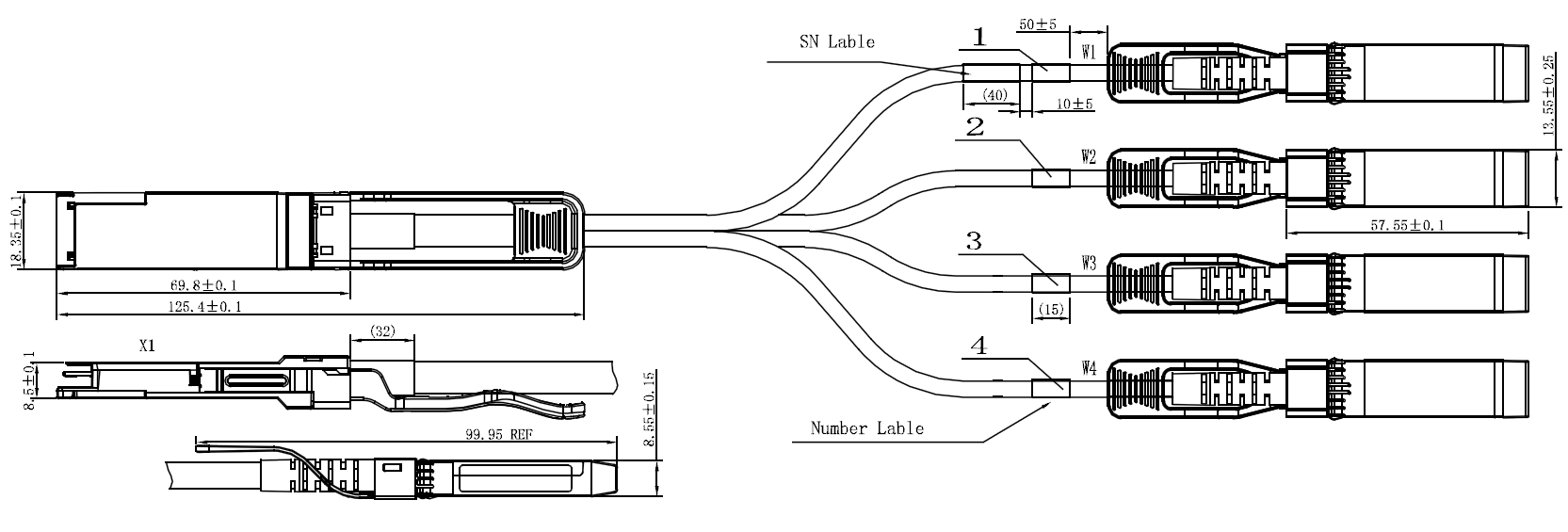

The connector is compatible with the SFF-8436 to SFF-8432 specification.



Length (m)

able AWG

1

30

3

30

5

26

7

26

Regulatory Compliance



Feature

Test Method

Performance

Electrostatic Discharge (ESD) to the Electrical Pins



MIL-STD-883C Method 3015.7



Class 1(>2000 Volts)

Electromagnetic Interference(EMI)

FCC Class B

Compliant with Standards

CENELEC EN55022 Class B

CISPR22 ITE Class B



RF Immunity(RFI)



IEC61000-4-3

Typically Show no Measurable Effect from a 10V/m Field Swept from 80 to 1000MHz

RoHS Compliance

RoHS Directive 2011/65/EU and it's Amendment Directives 6/6

RoHS 6/6 compliant
