JHA-QSFP-40G-AOC spec

l Support 40GBASE-SR4/QDR application l Compliant to QSFP+ Electrical MSA SFF-8436 l Multi rate of up to 10.3125Gbps l+3.3V single power supply l Transmission distance up to 300m l Low power consumption l Operating case temp Commercial: 0°C to +70 °C l UL certification cables (optional) l RoHS compliant
零售价
0.0
元
市场价
0.0
元
浏览量:
1011
产品编号
数量
-
+
库存:
0
产品描述
产品特征
产品参数
产品描述:
产品特征:

l Support 40GBASE-SR4/QDR application

l Compliant to QSFP+ Electrical MSA SFF-8436

l Multi rate of up to 10.3125Gbps

l+3.3V single power supply

l Transmission distance up to 300m

l Low power consumption

l Operating case temp Commercial: 0°C to +70 °C

l UL certification cables (optional)

l RoHS compliant



Applications

l 40GBASE-SR4 at 10.3125Gbps per lane

l InfiniBand QDR

l Other optical links

扫二维码用手机看
未找到相应参数组，请于后台属性模板中添加

Features



l Support 40GBASE-SR4/QDR application

l Compliant to QSFP+ Electrical MSA SFF-8436

l Multi rate of up to 10.3125Gbps

l+3.3V single power supply

l Transmission distance up to 300m

l Low power consumption

l Operating case temp Commercial: 0°C to +70 °C

l UL certification cables (optional)

l RoHS compliant



Applications



l 40GBASE-SR4 at 10.3125Gbps per lane

l InfiniBand QDR

l Other optical links

Absolute Maximum Ratings



Table1- Absolute Maximum Ratings



Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Supply Voltage

Vcc3

-0.5

-

+3.6

V



Storage Temperature

Ts

-10

-

+70

°C



Operating Humidity

RH

+5

-

+85

%

1

Recommended Operating Conditions



Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TC

0

-

+70

°C



Power Supply Voltage

Vcc

3.14

3.3

3.47

V



Power dissipation

Pd

-

-

1.5

w

1

Bit rate

BR

1.25

10.3125

-

Gbps



Table 2- Recommended operating Conditions



Electrical Characteristics



Table 3- Electrical Characteristics



Parameter

Symbol

Min.

Typ.

Max.

Units

Notes



ModSelL

Module Select

VOL

0

-

0.8

V



Module Unselect

VOH

2.5

-

VCC

V





LPMode

Low Power Mode

VIL

0

-

0.8

V



Normal Operation

VIH

2.5

-

VCC+0.3

V





ResetL

Reset

VIL

0

-

0.8

V



Normal Operation

VIH

2.5

-

VCC+0.3

V



ModPrsL

Normal Operation

VOL

0

-

0.4

V





IntL

Interrupt

VOL

0

-

0.4

V



Normal Operation

VoH

2.4

-

VCC

V



Electrical transmitter Characteristics

Differential Date Input Swing

Vout

200

-

1600

mV



Output Differential Impedance

ZD

90

100

110

Ω



Electrical Receiver Characteristics

Differential Data Output Swing

Vin,P-P

350

-

800

mVPP



Bit Error Rate

BER





E-12



1

Input Differential Impedance

ZIN

90

100

110

Ω



Recommended Interface Circuit

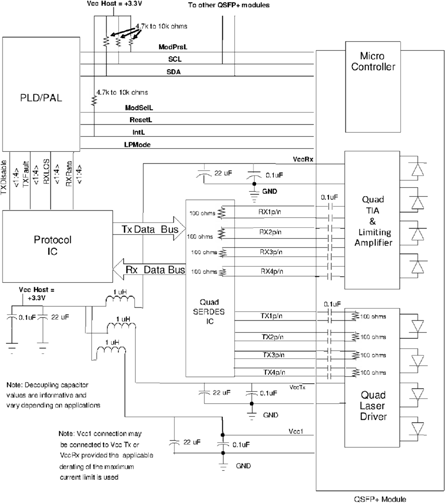

Figure 1, Recommended Interface Circuit



Pin arrangement

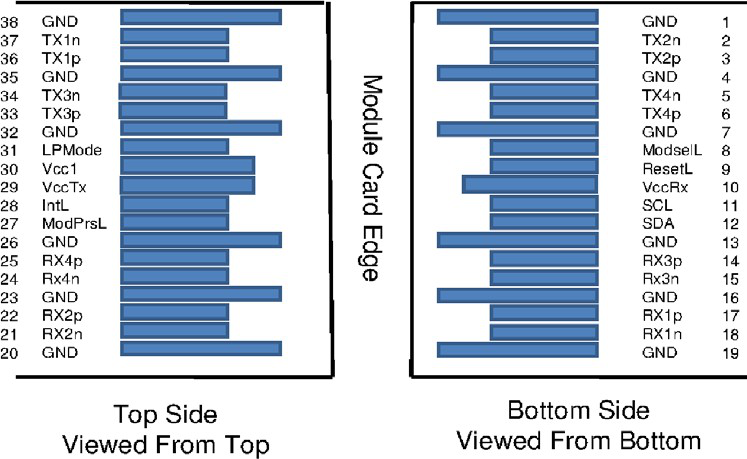

                                           Figure 2, Pin View



Table 4-Pin Function Definitions



Pin

Symbol

Name/Description

Notes

1

GND

Ground

1

2

Tx2n

Transmitter Inverted Data Input



3

Tx2p

Transmitter Non-Inverted Data Input



4

GND

Ground

1

5

Tx4n

Transmitter Inverted Data Input



6

Tx4p

Transmitter Non-Inverted Data Input



7

GND

Ground

1

8

ModSelL

Module Select



9

ResetL

Module Reset



10

Vcc Rx

+3.3V Power Supply Receiver



11

SCL

2-wire serial interface clock



12

SDA

2-wire serial interface data



13

GND

Ground

1

14

Rx3p

Receiver Non-Inverted Data Output



15

Rx3n

Receiver Inverted Data Output



16

GND

Ground

1

17

Rx1p

Receiver Non-Inverted Data Output



18

Rx1n

Receiver Inverted Data Output



19

GND

Ground

1

20

GND

Ground

1

21

Rx2n

Receiver Inverted Data Output



22

Rx2p

Receiver Non-Inverted Data Output



23

GND

Ground

1

24

Rx4n

Receiver Inverted Data Output



25

Rx4p

Receiver Non-Inverted Data Output



26

GND

Ground

1

27

ModPrsL

Module Present



28

IntL

Interrupt



29

Vcc Tx

+3.3V Power supply transmitter



30

Vcc1

+3.3V Power supply



31

LPMode

Low Power Mode



32

GND

Ground

1

33

Tx3p

Transmitter Non-Inverted Data Input



34

Tx3n

Transmitter Inverted Data Input



35

GND

Ground

1

36

Tx1p

Transmitter Non-Inverted Data Input



37

Tx1n

Transmitter Inverted Data Input



38

GND

Ground

1

Note: 1. Circuit ground is internally isolated from chassis ground.



Monitoring Specification

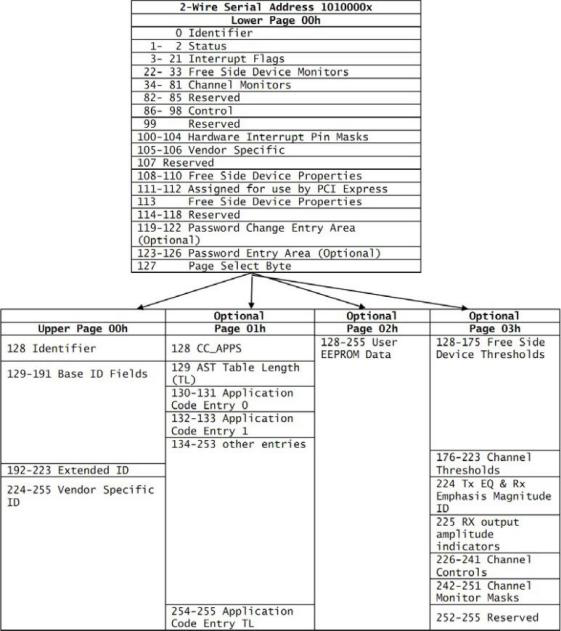

                                                                               Figure 3, Memory Map



Mechanical



Unit mm

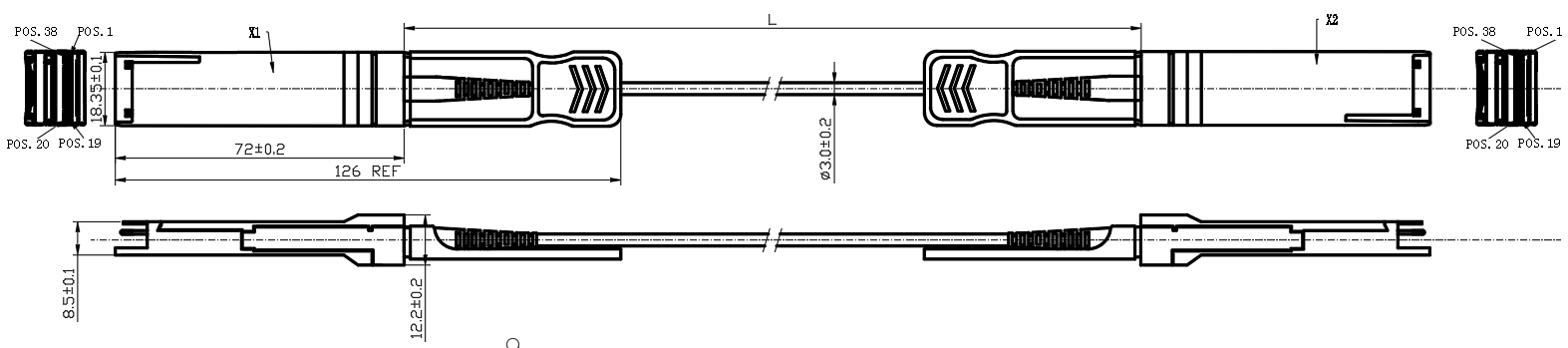

                                                                                                                                                      Figure 4, Mechanical Diagram



Table 5- Cable Length



Cable Length  L（Unit: m）

Tolerant（Unit: cm）

≤1.0

+5/-0

1.0＜L≤4.5

+15/-0

4.5＜L≤14.5

+30/-0

＞14.5

+2%/-0
