JHA-QSFP28-100G-AOC spec
浏览量:
1009

JHA-QSFP28-100G-AOC spec

l Support 100GBASE-SR4/EDR application l Compliant to QSFP28 Electrical MSA SFF-8636 l Multi rate of up to 25.78125Gbps l Transmission distance up to 100m l+3.3V single power supply l Low power consumption l Operating temp Commercial: 0°C to +70 °C l RoHS compliant l UL certification cables (optional)
零售价
0.0
市场价
0.0
浏览量:
1009
产品编号
数量
-
+
库存:
0
产品描述
产品特征
产品参数
产品描述:
产品特征:

Support 100GBASE-SR4/EDR application

Compliant to QSFP28 Electrical MSA SFF-8636

Multi rate of up to 25.78125Gbps

Transmission distance up to 100m

l+3.3V single power supply

Low power consumption

Operating  temp Commercial: 0°C to +70 °C

RoHS  compliant

UL certification cables (optional)



Applications

100GBASE-SR4 at 25.78125Gbps per lane

InfiniBand QDR, EDR

Other optical links

扫二维码用手机看
未找到相应参数组,请于后台属性模板中添加

Features

Support 100GBASE-SR4/EDR application

Compliant to QSFP28 Electrical MSA SFF-8636

Multi rate of up to 25.78125Gbps

Transmission distance up to 100m

l+3.3V single power supply

Low power consumption

Operating  temp Commercial: 0°C to +70 °C

RoHS  compliant

UL certification cables (optional)



Applications

100GBASE-SR4 at 25.78125Gbps per lane

InfiniBand QDR, EDR

Other optical links

Absolute Maximum Ratings



Table1- Absolute Maximum Ratings



Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Supply Voltage

Vcc3

-0.5

-

+3.6

V



Storage Temperature

Ts

-10

-

+70

°C



Operating Humidity

RH

+5

-

+85

%

1

Note: 1 No condensation



Recommended Operating Conditions



Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TC

0

-

+70

°C



Power Supply Voltage

Vcc

3.14

3.3

3.47

V



Power Dissipation

Pd

-

-

2.5

W

1

Bit Rate

BR

10.3125

25.78125

-

Gbps



Table 2- Recommended operating Conditions

Note: 1Per terminal



Electrical Characteristics



Table 3- Electrical Characteristics



Parameter

Symbol

Min.

Typ.

Max.

Units

Notes



ModSelL

Module Select

VOL

0

-

0.8

V



Module Unselect

VOH

2.5

-

VCC

V





LPMode

Low Power Mode

VIL

0

-

0.8

V



Normal Operation

VIH

2.5

-

VCC+0.3

V





ResetL

Reset

VIL

0

-

0.8

V



Normal Operation

VIH

2.5

-

VCC+0.3

V



ModPrsL

Normal Operation

VOL

0

-

0.4

V





IntL

Interrupt

VOL

0

-

0.4

V



Normal Operation

VoH

2.4

-

VCC

V



Electrical transmitter Characteristics

Differential Date Input Swing

Vin,p-p

200

-

1600

mV



Output Differential Impedance

Zin

90

100

110

Ω



Electrical Receiver Characteristics

Differential Data Output Swing

Vout

200

-

800

mV



Bit Error Rate

BER

-

-

E-12

-

1

Input Differential Impedance

ZD

90

100

110

Ω



Note: 1PRBS2^31-1@25.78125Gbps



Recommended Interface Circuit

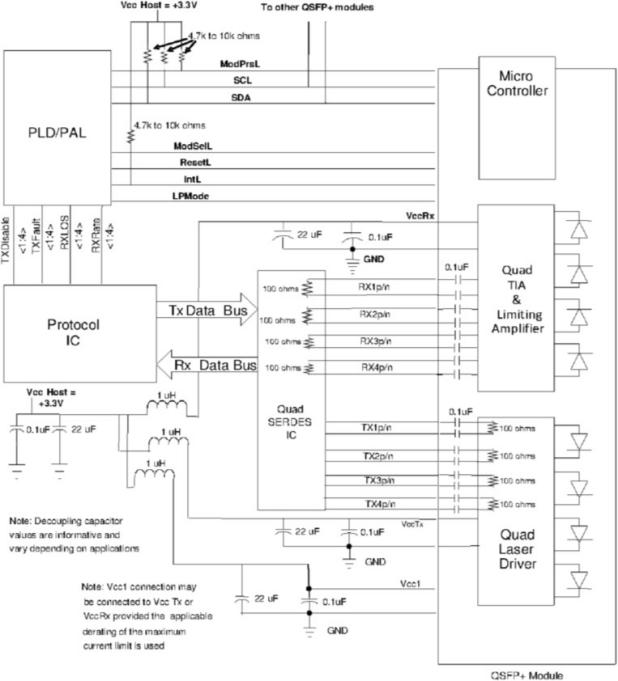

                        Figure 1, Recommended Interface Circuit



Pin arrangement

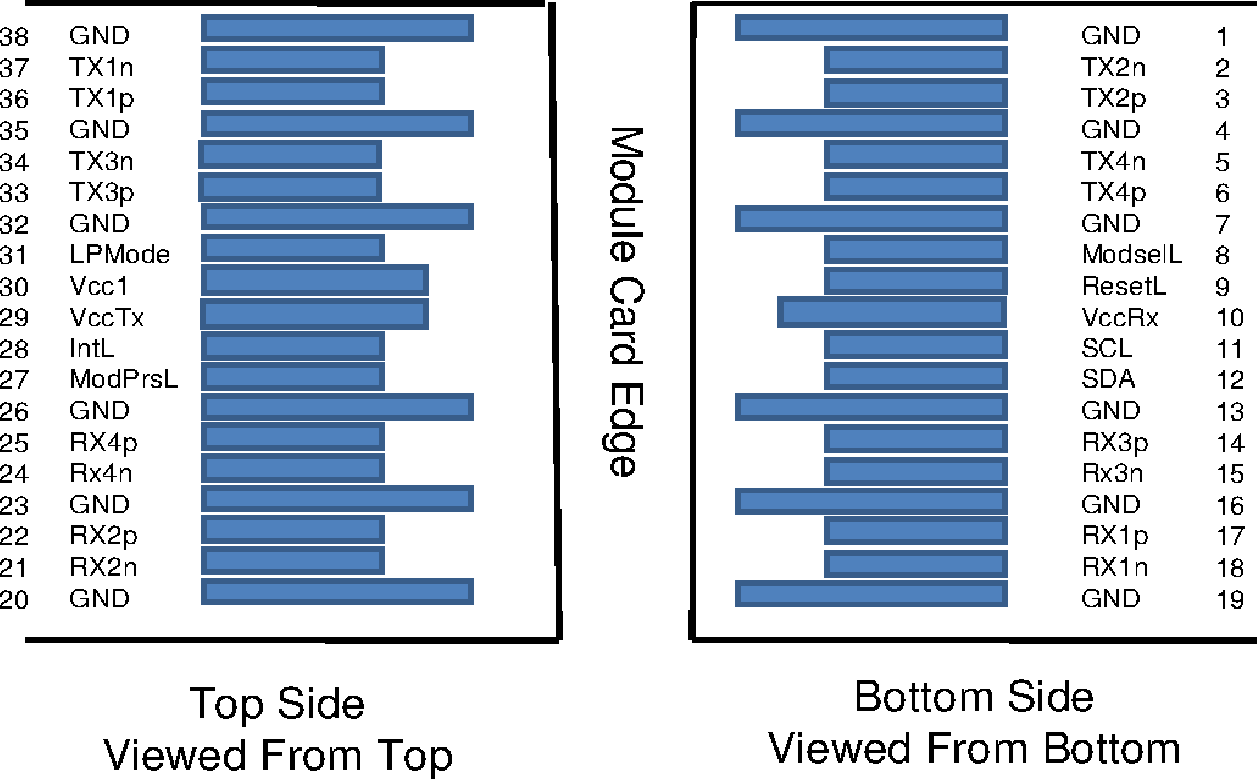

                                                                                                                             Figure 2, Pin View



Table 4-Pin Function Definitions



Pin

Symbol

Name/Description

Notes

1

GND

Ground

1

2

Tx2n

Transmitter Inverted Data Input



3

Tx2p

Transmitter Non-Inverted Data Input



4

GND

Ground

1

5

Tx4n

Transmitter Inverted Data Input



6

Tx4p

Transmitter Non-Inverted Data Input



7

GND

Ground

1

8

ModSelL

Module Select



9

ResetL

Module Reset



10

Vcc Rx

+3.3V Power Supply Receiver



11

SCL

2-wire serial interface clock



12

SDA

2-wire serial interface data



13

GND

Ground

1

14

Rx3p

Receiver Non-Inverted Data Output



15

Rx3n

Receiver Inverted Data Output



16

GND

Ground

1

17

Rx1p

Receiver Non-Inverted Data Output



18

Rx1n

Receiver Inverted Data Output



19

GND

Ground

1

20

GND

Ground

1

21

Rx2n

Receiver Inverted Data Output



22

Rx2p

Receiver Non-Inverted Data Output



23

GND

Ground

1

24

Rx4n

Receiver Inverted Data Output



Pin

Symbol

Name/Description

Notes

25

Rx4p

Receiver Non-Inverted Data Output



26

GND

Ground

1

27

ModPrsL

Module Present



28

IntL

Interrupt



29

Vcc Tx

+3.3V Power supply transmitter



30

Vcc1

+3.3V Power supply



31

LPMode

Low Power Mode



32

GND

Ground

1

33

Tx3p

Transmitter Non-Inverted Data Input



34

Tx3n

Transmitter Inverted Data Input



35

GND

Ground

1

36

Tx1p

Transmitter Non-Inverted Data Input



37

Tx1n

Transmitter Inverted Data Input



38

GND

Ground

1

Note: 1. Circuit ground is internally isolated from chassis ground.



Monitoring Specification

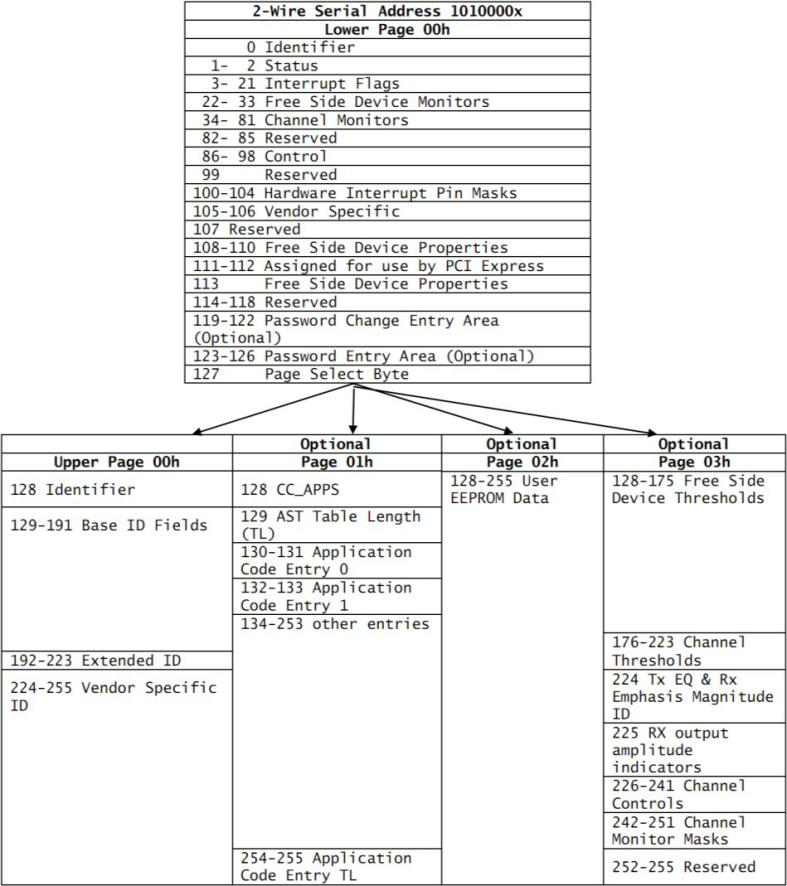

                                                         Figure 3, Memory Map



Mechanical Design Diagram



Unit mm

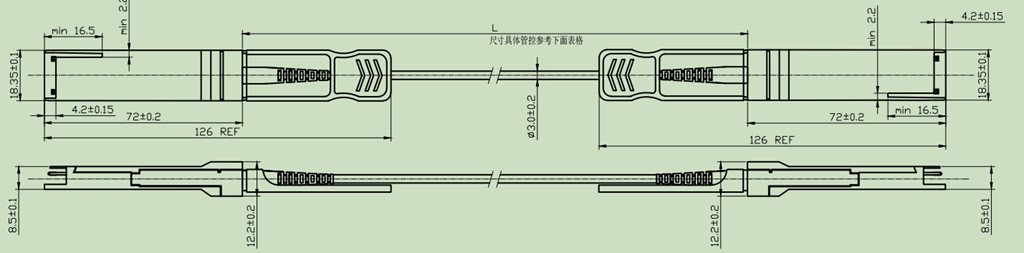

                                                                                                                Figure 4, Mechanical Design Diagram



Table 5- Cable Length



Cable Length  LUnit: m

TolerantUnit: cm

1.0

+5/-0

1.0<L4.5

+15/-0

4.5<L14.5

+30/-0

14.5

+2%/-0
