JHA-QSFP-4SFP-40G-AOC spec
浏览量:
1014

JHA-QSFP-4SFP-40G-AOC spec

●Support40-4*10GBASE-SRapplication●ElectricalinterfacecomplianttoQSFP+connector(SFF-8436)andSFP+connector(SFF-8431)● 850nmVCSELtransmitter,PINphoto-detectorreceiver● Multirateofupto10.3125Gbpsper lane●Operatingcasetemperature:0to70℃●+3.3Vpowersupplyvoltage●Lowpowerconsumption●RoHS compliant●ULcertificationcables (optional)
零售价
0.0
市场价
0.0
浏览量:
1014
产品编号
数量
-
+
库存:
0
产品描述
产品特征
产品参数
产品描述:
产品特征:

Support 40-4*10GBASE-SR application

Electrical interface compliant to QSFP+ connector

(SFF-8436) and SFP+ connector (SFF-8431)

● 850nm VCSEL transmitter, PIN photo-detector receiver

 Multi rate of up to 10.3125Gbps per lane

● Operating case temperature: 0 to 70℃

+3.3V power supply voltage

● Low power consumption

● RoHS compliant

● UL certification cables (optional)

扫二维码用手机看
未找到相应参数组,请于后台属性模板中添加

Features

Support 40-4*10GBASE-SR application

Electrical interface compliant to QSFP+ connector

(SFF-8436) and SFP+ connector (SFF-8431)

● 850nm VCSEL transmitter, PIN photo-detector receiver

 Multi rate of up to 10.3125Gbps per lane

● Operating case temperature: 0 to 70℃

+3.3V power supply voltage

● Low power consumption

● RoHS compliant

● UL certification cables (optional)



Applications

● 40-4*10 Gbe-SR

● Fibre Channel Applications

● InfiniBand QDR, SDR, DDR




● Servers, switches, storage and host card adapters,etc.

Absolute Maximum Ratings



Parameter

Symbol

Min

Typical

Max

Unit

Storage Temperature

TS

-10

-

+85

Operating Humidity

RH

+5

-

+85

%

Supply Voltage

VCC

-0.5

+3.3

+3.6

V

Recommended Operating Conditions



Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

TC

0



+70

Supply Voltage

VCC

+3.14

+3.3

+3.47

V

Supply current (QSFP+)

ICC

-

-

450

mA

Supply current (SFP+)(per terminal)



-

-

150

mA

Channel Data Rate

Dr



10.3125

-

Gbps

Fiber bend radius

-

3

-

-

CM

Electrical and Optical characteristics

Measured conditionChannel Data Rate 10.3125Gbps, VRCCR=3.3V, PRBS31, Case Operating Temperature 0~70



Transmitter



Parameter

Symbol

Min

Typical

Max

Unit

Centre Wavelength

λc

830

850

870

nm

RMS spectral width

Pm

-

-

0.45

nm

Average launch power, each lane

PAVG

-6.0

-

+2.4

dBm

Extinction Ratio

ER

3.0

-

-

dB

Input differential swing

Vin PP

200

-

1600

mV

Input differential impedance

Zin

90

100

110

Ω

Parameter

Symbol

Min

Typical

Max

Unit

Centre Wavelength

λc

830

850

870

nm

Bit Error Rate

BER

-

-

E-12



Differential Data Output Swing

Vout PP

400

-

1000

mV

Output Differential Impedance

Zout

90

100

110

Ω

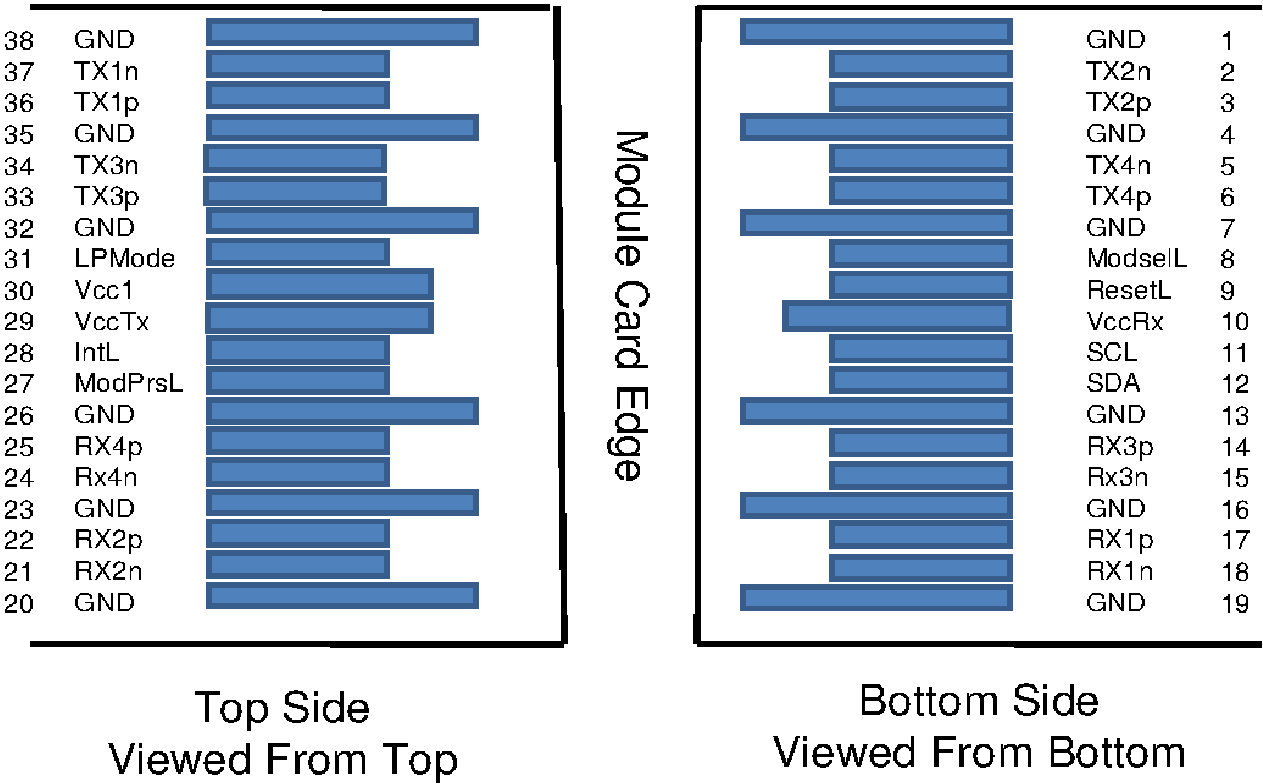

QSFP + Pin Descriptions



PIN

Name

Function/Description

1

GND

Module Ground

2

Tx2n

Transmitter inverted data input

3

Tx2p

Transmitter non-inverted data input

4

GND

Module Ground

5

Tx4n

Transmitter inverted data input

6

Tx4p

Transmitter non-inverted data input

7

GND

Module Ground

8

MODSEIL

Module Select

9

ResetL

Module Reset

10

VCCRx

+3.3v Receiver Power Supply

11

SCL

2-wire Serial interface clock

12

SDA

2-wire Serial interface data

13

GND

Module Ground

14

RX3p

Receiver non-inverted data output

15

RX3n

Receiver inverted data output

16

GND

Transmitter Power Supply

17

RX1p

Receiver non-inverted data output

18

RX1n

Receiver inverted data output

19

GND

Module Ground

20

GND

Module Ground

21

RX2n

Receiver inverted data output

22

RX2p

Receiver non-inverted data output

23

GND

Module Ground

24

RX4n

Receiver inverted data output

25

RX4p

Receiver non-inverted data output

26

GND

Module Ground

27

ModPrsL

Module Present, internal pulled down to GND

28

IntL

Interrupt output, should be pulled up on host board

29

VCCTx

+3.3v Transmitter Power Supply

30

VCC1

+3.3v Power Supply

31

LPMode

Low Power Mode

32

GND

Module Ground

33

Tx3p

Transmitter non-inverted data input

34

Tx3n

Transmitter inverted data input

35

GND

Module Ground

36

Tx1p

Transmitter non-inverted data input

37

Tx1n

Transmitter inverted data input

38

GND

Module Ground

SFP + Pin Descriptions



Pin

Symbol

Name/Description

Notes

1

VEET

Module Transmitter Ground

1

2

TX_FAULT

Module Transmitter Fault

2

3

TX_DISABLE

Transmitter Disable; Turns off transmitter laser output

3

4

SDA

2-Wire Serial Interface Data Line (MOD-DEF2)



5

SCL

2-Wire Serial Interface Clock (MOD-DEF1)



6

MOD_ABS

Module Absent, connected to VEET or VEER in the module

2

RS0

Rate Select 0, optionally controls SFP+ module receiver



8

RX_LOS

Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as NOT Signal Detect)

2

9

RS1

Rate Select 1, optionally controls SFP+ module transmitter



10

VEER

Module Receiver Ground

1

11

VEER

Module Receiver Ground

1

12

RD-

Receiver Inverted Data Output



13

RD+

Receiver Non-Inverted Data Output



14

VEER

Module Receiver Ground

1

15

VCCR

Module Receiver 3.3 V Supply



16

VCCT

Module Transmitter 3.3 V Supply



17

VEET

Module Transmitter Ground

1

18

TD+

Transmitter Non-Inverted Data Input



19

TD-

Transmitter Inverted Data Input



20

VEET

Module Transmitter Ground

1

Mechanical Design Diagram



Table 1



Cable Length L1(Unit: m

TolerantUnit: cm

1.0

+5/-0

1.0~4.5

+15/-0

5.0~14.5

+30/-0

15.0

+2%/-0

Table 2



 Length L1(Unit: m

Length L2(Unit: m

1.0

0.7

2

1.4

3

2

5.0

3
