SFP电口光模块千兆 100米

JHA3401 10/100/1000BASE-TcopperSFPtransceiverishighperformance,costeffectivemodulecompliantwiththeGigabitEthernetand10/100/1000BASE-TstandardsasspecifiedinIEEE802.3-2002andIEEE802.3ab,whichsupporting10/100/1000Mbpsdata-rateupto100metersreachoverunshieldedtwisted-paircategory5cable.TheJHA3401 supports10/100/1000Mbpsfullduplexdata-linkswith5-levelPulseAmplitudeModula-tion(PAM)signals.Allfourpairsinthecableareusedwithsymbolrateat250Mbpsoneachpair.TheJHA3401 providesstandardserialIDinformationcompliantwithSFPMSA,whichcanbeaccessedwithaddressofA0hviathe2-wireserialCMOSEEPROMprotocol.ThephysicalICcanalsobeaccessedvia2-wireserialbusataddressACh.
零售价
0.0
市场价
0.0
浏览量:
1013
产品编号
数量
-
+
库存:
产品描述
产品特征
技术参数
尺寸图
订购信息

JHA3401 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The JHA3401 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The JHA3401 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

扫二维码用手机看
未找到相应参数组,请于后台属性模板中添加

Features:

² Up to 1.25Gb/s bi-directional data links

² Hot-pluggable SFP footprint

² Extended case temperature range (-40°C to +85°C )

² Fully metallic enclosure for low EMI

² Low power dissipation

² Compact RJ-45 connector assembly

² Detailed product information in EEPROM

² +3.3V single power supply

² Access to physical layer IC via 2-wire serial bus

² 10/100/1000 BASE-T operation in host systems with SGMII interface

² Compliant with SFP MSA

² Compliant with IEEE Std 802.3TM-2002

² Compliant with FCC 47 CFR Part 15, Class B

² RoHS Compliant Products



Applications:

² 1.25 Gigabit Ethernet over Cat 5 cable

² Switch/Router to Switch/Router Link

² High speed I/O for file severs

SFP to Host Connector Pin Out



Pin

Signal name

Description

MSA Notes

1

VEET

Transmitter ground (common with receiver ground)



2

TFAULT

Transmitter Fault. Not supported

Note 1

3

TDIS

Transmitter Disable. PHY disabled on high or open

Note 2

4

MOD_DEF(2)

Module Definition 2. Data line for Serial ID.

Note 3

5

MOD_DEF(1)

Module Definition 1. Clock line for Serial ID.

Note 3

6

MOD_DEF(0)

Module Definition 0. Grounded within the module.

Note 3

7

Rate Select

No connection required



8

LOS

Loss of Signal - High Indicates Loss of Signal



9

VEER

Receiver Ground (common with transmitter ground)



10

VEER

Receiver Ground (common with transmitter ground)



11

VEER

Receiver Ground(common with transmitter ground)



12

RD-

Receiver Inverted DATA out. AC Coupled

Note 5

13

RD+

Receiver Non-inverted DATA out. AC Coupled

Note 5

14

VEER

Receiver Ground (common with transmitter ground)



15

VCCR

Receiver Power Supply

Note 6

16

VCCT

Transmitter Power Supply

Note 6

17

VEET

Transmitter Ground (Common with Receiver Ground)



18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.

Note 7

19

TD-

Transmitter Inverted DATA in. AC Coupled.

Note 7

20

VEET

Transmitter Ground(common with receiver ground)



Notes:

1. TX Fault is not used and is always tied to ground through a 100 ohm resistor.

2. TX Disable as described in the MSA is not applicable to the 1000BASE-T module, but is used for convenience as an input to reset the internal ASIC. This pin is pulled up within the module with a 4.7 KW resistor.

Low (0 – 0.8 V): Transceiver on

Between (0.8 V and 2.0 V): Undefined

High (2.0 – 3.465 V): Transceiver in reset state

Open: Transceiver in reset state

3. Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7-10 KW resistor on the host board to a supply less than VCCT + 0.3 V or VCCR + 0.3 V.

Mod Def 0 is tied to ground through a 100 ohm resistor to indicate that the module is present.

Mod-Def 1 is clock line of two wire serial interface for optional serial ID

Mod-Def 2 is data line of two wire serial interface for optional serial ID

4. RD-/+: These are the differential receiver outputs. They are ac coupled 100 ohm differential lines which should be terminated with 100 ohm differential at the user SerDes. The ac coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 2000 mV differential (185 – 1000 mV single ended) when properly terminated. These levels are compatible with CML and LVPECL voltage swings.

5. VCCR and VCCT are the receiver and transmitter power supplies. They are defined as 3.3 V ± 5% at the SFP connector pin. The maximum supply current is about 300mA and the associated in-rush current will typically be no more than 30 mA above steady state after 500 nanoseconds.

6. TD-/+: These are the differential transmitter inputs. They are ac coupled differential lines with 100 W differential termination inside the module. The ac coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 500 – 2400 mV (250 –1200 mV single ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single ended) be used for best EMI performance. These levels are compatible with CML and LVPECL voltage swings.

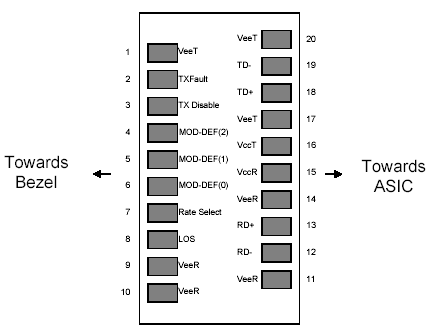

Figure 1. Diagram of host board connector block pin numbers and names



+3.3V Volt Electrical Power Interface



The JHA3401 has an input voltage range of 3.3 V +/- 5%. The 4 V maximum voltage is not allowed for continuous operation.



Parameter

Symbol

Min.

Typical

Max.

Units

Notes/Conditions

Supply Current

Is



320

375

mA

1.2W max power over full range of voltage and temperature. See caution note below

Input Voltage

Vcc

3.13

3.3

3.47

V

Referenced to GND

Surge Current

Isurge



30



mA

Hot plug above steady state current. See caution note

Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

                                                                           Table 2. +3.3 Volt electrical power interface



Low-Speed Signals



MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals. Both MOD_ DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc.



Parameter

Symbol

Min.

Max.

Units

Notes/Conditions

SFP Output LOW

VOL

0

0.5

V

4.7k to 10k pull-up to host_Vcc.

SFP Output HIGH

VOH

host_Vcc -0.5

host_Vcc + 0.3

V

4.7k to 10k pull-up to host_Vcc.

SFP Input LOW

VIL

0

0.8

V

4.7k to 10k pull-up to Vcc.

SFP Input HIGH



2

Vcc + 0.3 V

V

4.7k to 10k pull-up to Vcc.

Table 3. Low-speed signals, electronic characteristics



High-Speed Electrical Interface



All high-speed signals are AC-coupled internally.



Transmission Line-SFP

Parameter

Symbol

Min.

Typical

Max.

Units

Notes/Conditions

Line Frequency

fL



125



MHz

5-level encoding, per IEEE 802.3

Tx Output Impedance

Zout,TX



100



Ohm

Differential

Rx Input Impedance

Zin,RX



100



Ohm

Differential

 Table 4. High-speed electrical interface, transmission line-SFP



Host-SFP

Parameter

Symbol

Min.

Typical

Max.

Units

Notes/Conditions

Single ended data input swing

Vinsing

250



1200

mV

Single ended

Single ended data output swing

Voutsing

350

100

800

mV

Single ended

Rise/Fall Time

Tr,Tf



175



psec

20%-80%

Tx Input Impedance

Zin



50



Ohm

Single ended

Rx Output Impedance

Zout



50



Ohm

Single ended

Table 5. High-speed electrical interface, host-SFP



General Specifications



Parameter

Symbol

Min.

Typical

Max.

Units

Notes/Conditions

Data Rate

BR

10



1,000

Mb/s

IEEE 802.3 compatible.

Cable Length

L





100

m

Category 5 UTP. BER <10-12

Table 6. General specifications

Notes:

1. Clock tolerance is +/- 50 ppm

2. By default, the JHA3401 is a full duplex device in preferred master mode

3. Automatic crossover detection is enabled. External crossover cable is not required

4. 10/100/1000 BASE-T operation requires the host system to have an SGMII interface

with no clocks, With a SERDES that does not support SGMII, the module will operate at 1000BASE-T only.



Environmental Specifications



The JHA3401 has an extended range from -40°C to +85°C case temperature as specified in Table 7.



Parameter

Symbol

Min.

Typical

Max.

Units

Notes/Conditions

Operating Temperature

Top

-40



85

°C

Case temperature

Storage Temperature

Tsto

-40



100

°C

Ambient temperature

Table 7. Environmental specifications



 Serial ID Memory Contents



Data Address

Length

(Byte)

Name of

Length

Description and Contents

Base ID Fields

0

1

Identifier

Type of Serial transceiver (03h=SFP)

1

1

Reserved

Extended identifier of type serial transceiver (04h)

2

1

Connector

Code of optical connector type (22=RJ45)

3-10

8

Transceiver

1000BASE-T

11

1

Encoding

8B10B (01h)

12

1

BR,Nominal

Nominal baud rate, unit of 100Mbps

13

1

Reserved

(0000h)

14

1

Length(9um,km)

Link length supported for 9/125um fiber, units of km

15

1

Length(9um)

Link length supported for 9/125um fiber, units of 100m

16

1

Length(50um)

Link length supported for 50/125um fiber, units of 10m

17

1

Length(62.5um)

Link length supported for 62.5/125um fiber, units of 10m

18

1

Length(Copper)

Link length supported for copper, units of meters

19

1

Reserved



20-35

16

Vendor Name

SFP vendor name:JHA Technology Co., Ltd

36

1

Reserved



37-39

3

Vendor OUI

SFP transceiver vendor OUI ID

40-55

16

Vendor PN

Part Number: “JHAXXX” (ASCII)

56-59

4

Vendor rev

Revision level for part number

60-61

2

Wavelength

Laser wavelength

62

1

Reserved



63

1

CCID

Least significant byte of sum of data in address 0-62

Extended ID Fields

64-65

2

Option

Indicates which optical SFP signals are implemented(001Ah = LOS, TX_FAULT, TX_DISABLE all supported)

66

1

BR, max

Upper bit rate margin, units of %

67

1

BR, min

Lower bit rate margin, units of %

68-83

16

Vendor SN

Serial number (ASCII)

84-91

8

Date code

Manufacturing date code

92-94

3

Reserved



95

1

CCEX

Check code for the extended ID Fields (addresses 64 to 94)

Vendor Specific ID Fields

96-127

32

Readable

Vendor specific date, read only



Mechanical drawing

JHA3401

10/100/1000BASE-T SFP Copper Transceiver

Hot Pluggable, 1.25Gb/s,Cat-5 UTP Cable, 100m
